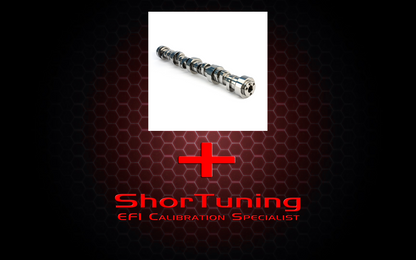

ShorTuning LTx SMRX Stroker Camshaft

With years of experience in the tuning market and product development area we have taken all this knowledge and funneled into our new ShorTuning camshafts! Not only are these custom designed specs (Duration, LSA, ICL, Lift) but we also designed the actual lobe profile in house!

These camshafts are ground on popular 5150 cores and have been verified on a Adcole for precise lobe profile and location verification. Samples have also been cut and verified heat treat depth!

The SMRX stroker cam is designed for stroker Gen5 LT engines that need different valve events for a larger cubic inch engine. These valve events are geared towards a 4" stroke but will also work well with L8T cranks! The cam is moderately aggressive with a peak RPM between 7100-7500 depending on cylinder head and intake manifold!

Camshaft is designed to be locked out. The lockout can be purchased with the cam. You will need to choose which style lockout you need. Gen5 LTx have two different phasers, make sure you order the correct one with your camshaft!

Specs: 244/258 113+3

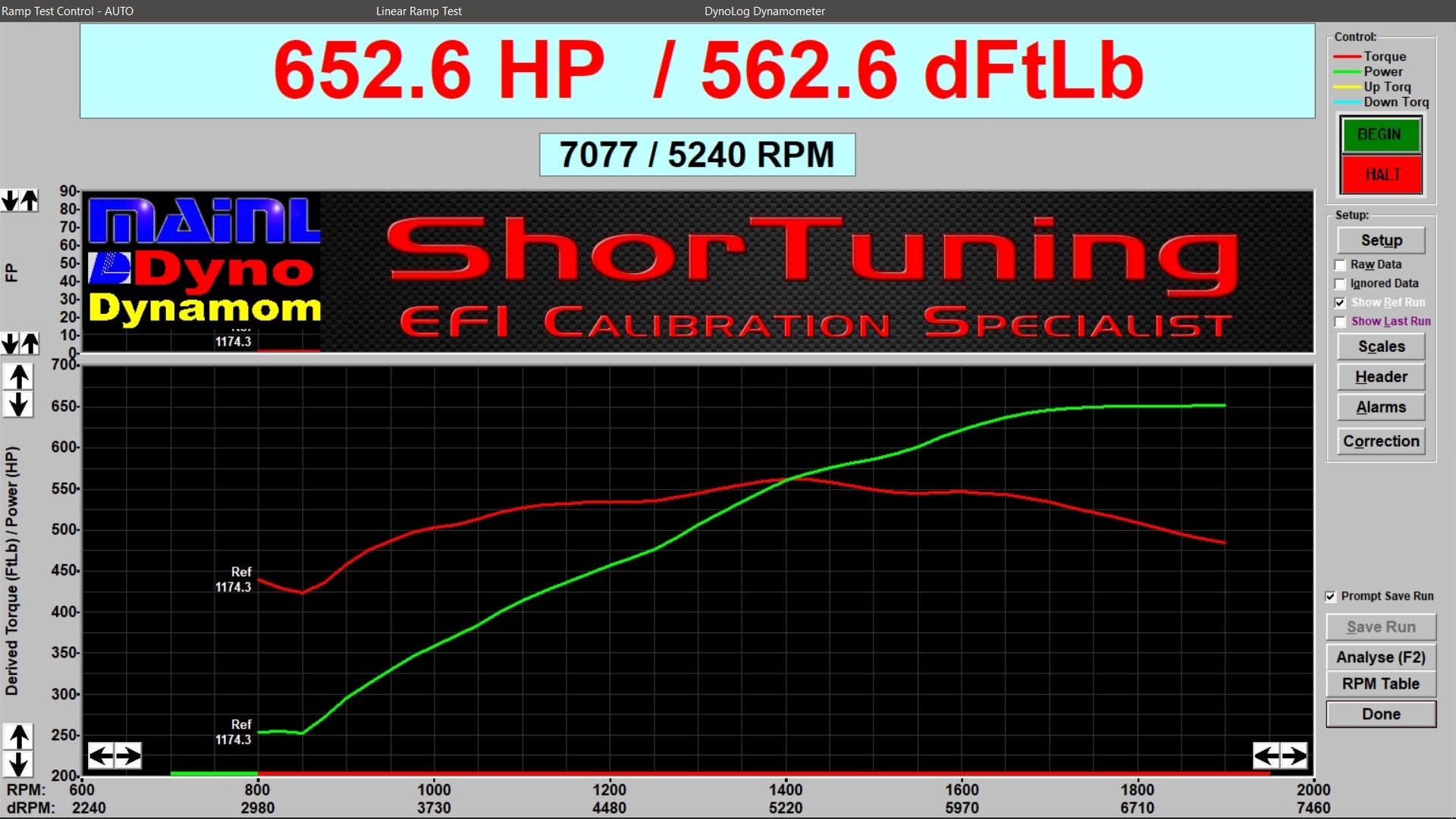

Dyno Graph is a 416 12:1 LT1, GPI CNC Stock Heads, GPI Ported MSD, Katech 103, LT's, Rotofab, Flex Fuel and this camshaft.
