MaxxECU Pro Standard

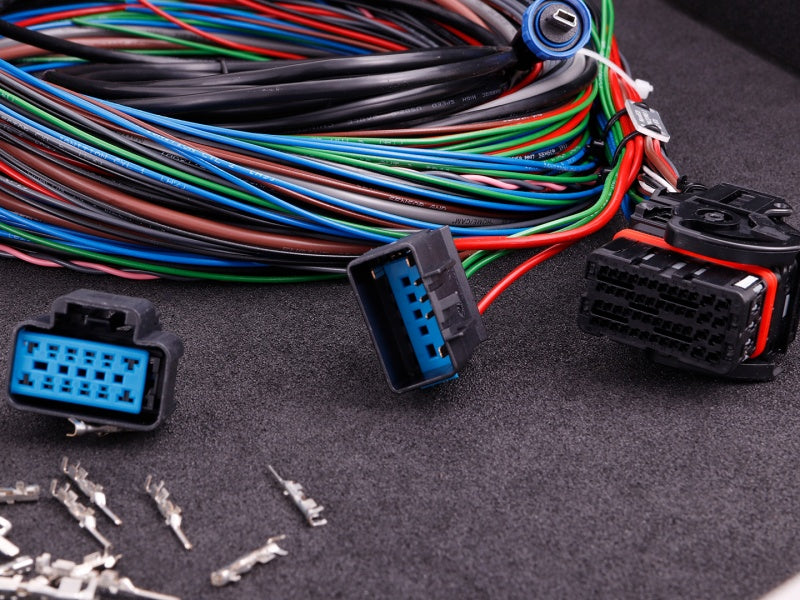

Harness 1 and has the following inputs / outputs:

• INJ 1-8
• IGN 1-8
• GPO 1-8
• 1 WBO
• DIN 1-2
• AIN 1-4
• CLT, TPS, IAT
• Trigger + Home
• CAN 1

For enhanced features MaxxECU PRO must be supplemented with more cable harnesses.

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!
Fast Facts:

• Up to 12 cylinders sequentially
• 16 injector outputs (low or high impedance injectors)
• 12 ignition outputs
• 12 inputs for exhaust gas temperature sensors (EGT)
• Built in MAP-sensor for boost pressure up to 3bar (400Kpa)
• Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
• Dual E-Throttle (DBW) support
• Dual knock sensor input
• 16 optional 0-5V inputs.
• 6 additional temperature inputs.
• 10 additional digital inputs (4 of them can be used with VR sensors)
• 30 auxiliary outputs (GPO), 8 of them +12v outputs
• 2 0-5V output
• 1 5-10v output (sensor output).
• Dual CAN bus
• Waterproof aluminum case
• Connectors, software and settings completely backwards compatible with standard MaxxECU. Easy upgrade
