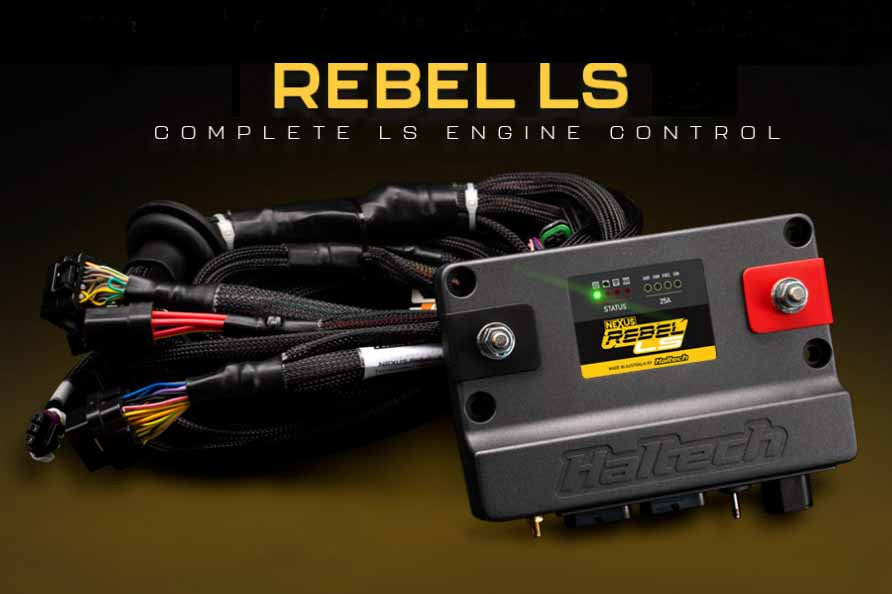

Nexus Rebel LS Kit

Nexus Rebel LS Kit

Haltech

SKU:HT-220204

Regular price $1,420.25
Regular price Sale price $1,420.25
Sale Sold out
Throttle Body Style
Tuning Support

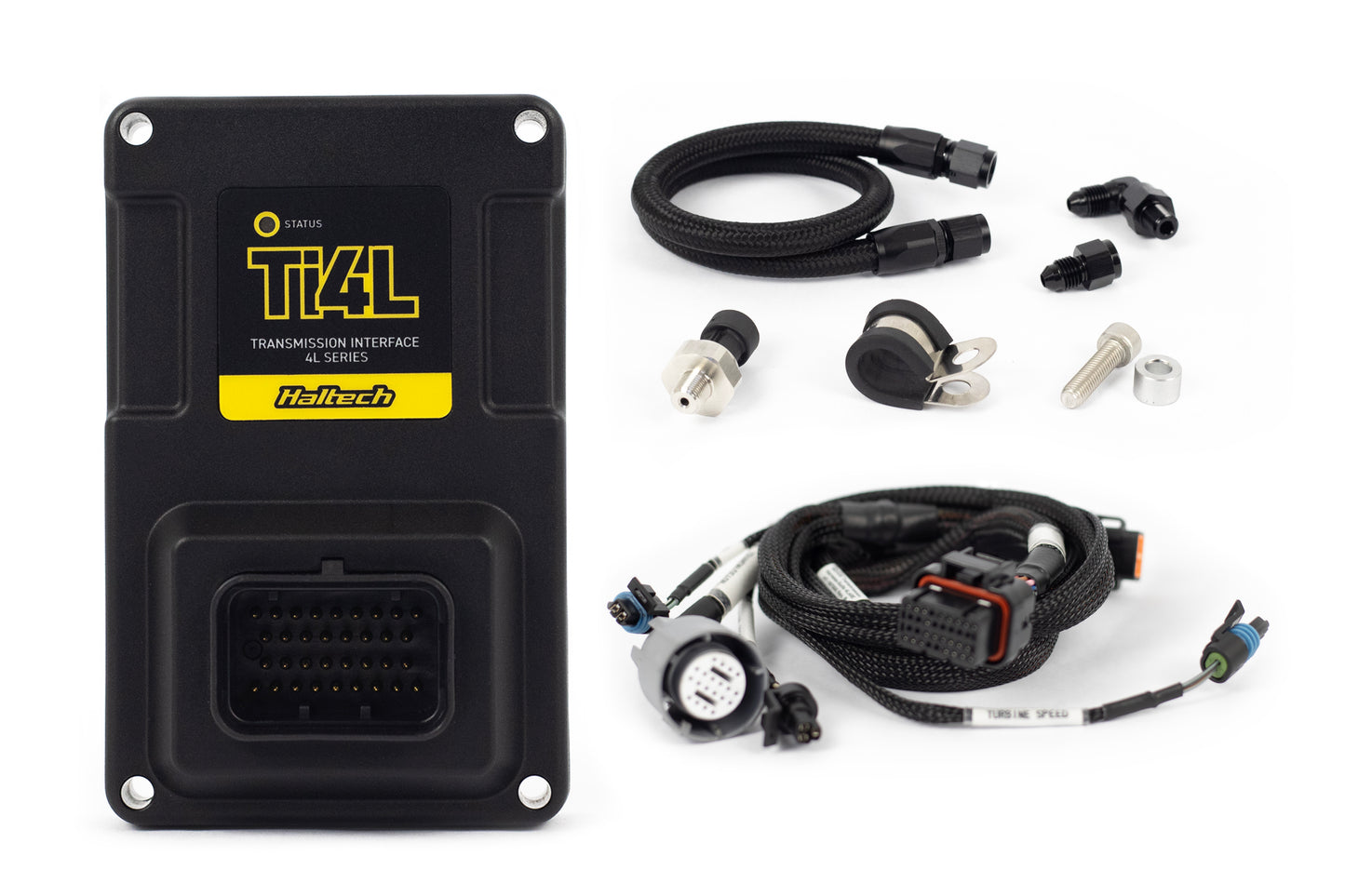

Ti4L Trans Control Kit
The DBW option is a Gen4 style harness for front cam sensor and USCAR connector, The DBC option is a Gen3 style harness for rear cam sensor and Jetronic/Minitimer/EV1 injector connections. If you have a Gen4 engine with front cam sensor but want DBC, order the DBW option and add on the DBC HT-186504 sub harness. This will be the easiest way to get your front cam sensor 58x engine functioning with DBC plug ins.

Here is what is included with each of the above options:
DBC Option - HT-220201 - Nexus Rebel LS kit to suit a Gen III LS engine with cable throttle, EV1 injector plugs, and a manual transmission

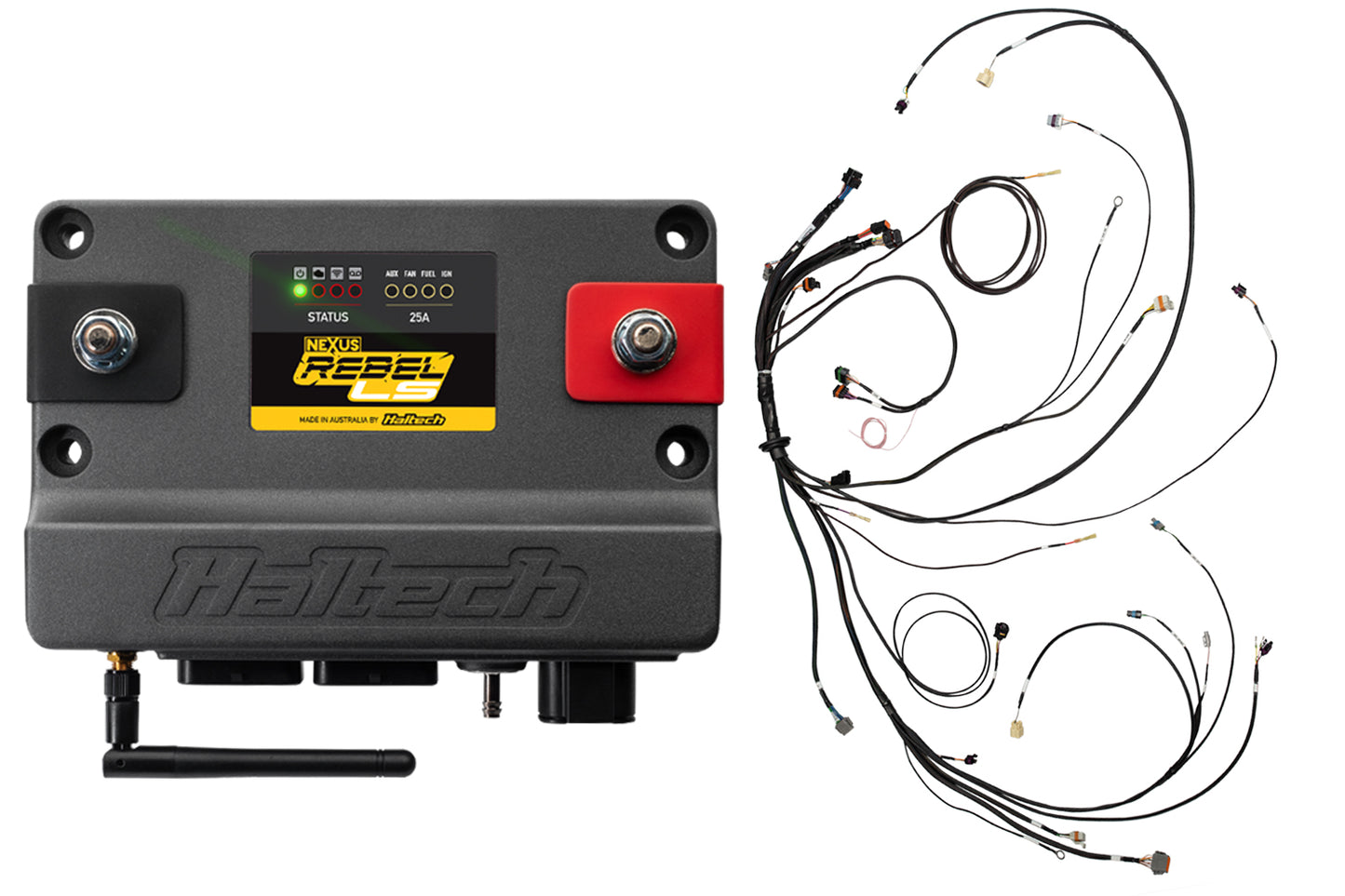

  • Nexus Rebel LS ECU (HT-220001)
  • Nexus Rebel LS main terminated harness (HT-186500)

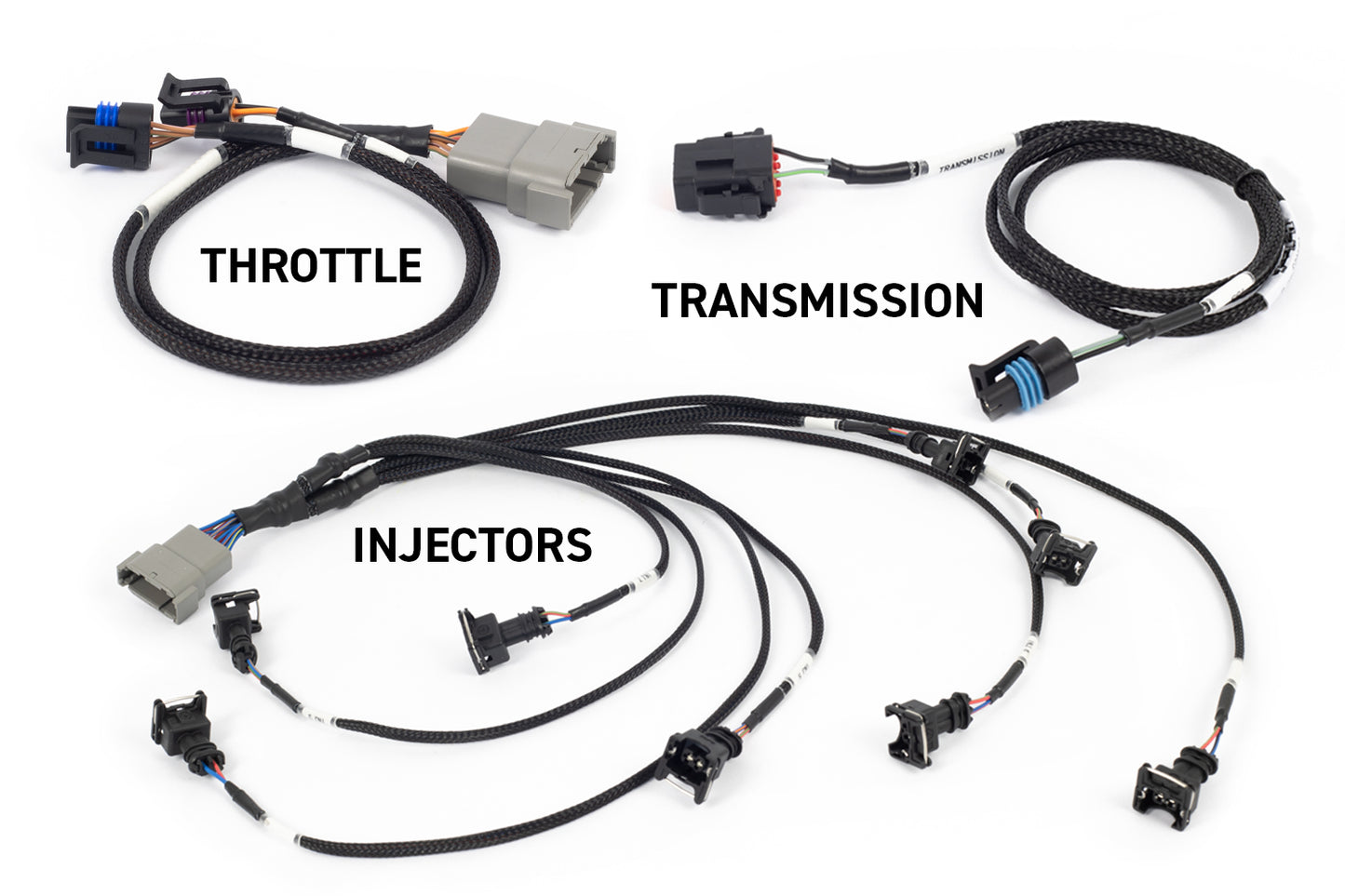

  • Throttle sub-harness to connect to cable throttle setup TPS + IAC (HT-186504)
  • Injector sub-harness with EV1 connectors (HT-186501)
  • T56 manual transmission harness (HT-187003)

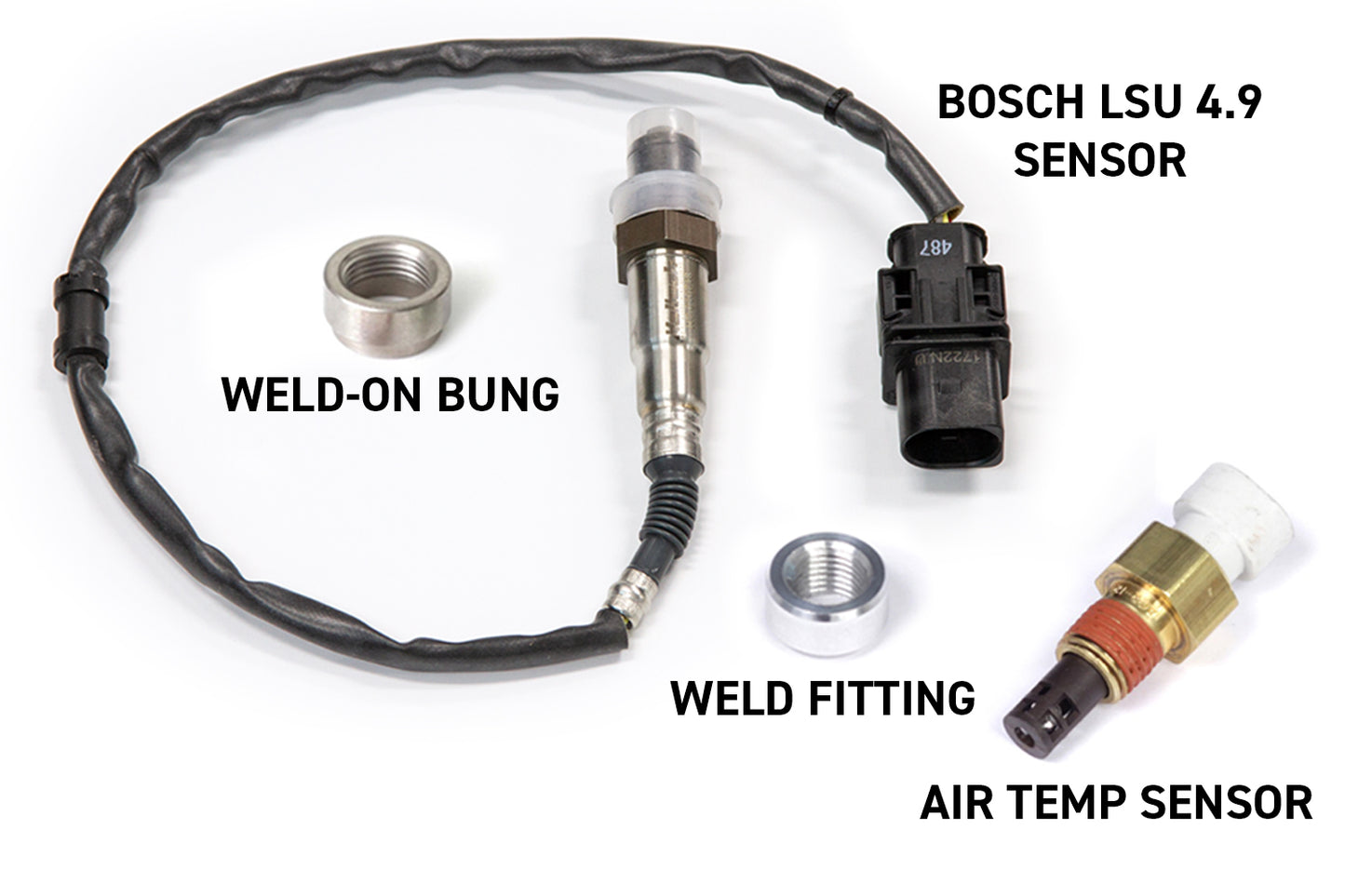

  • Bosch LSU 4.9 wideband O2 sensor and bung
  • Air temperature sensor and bung

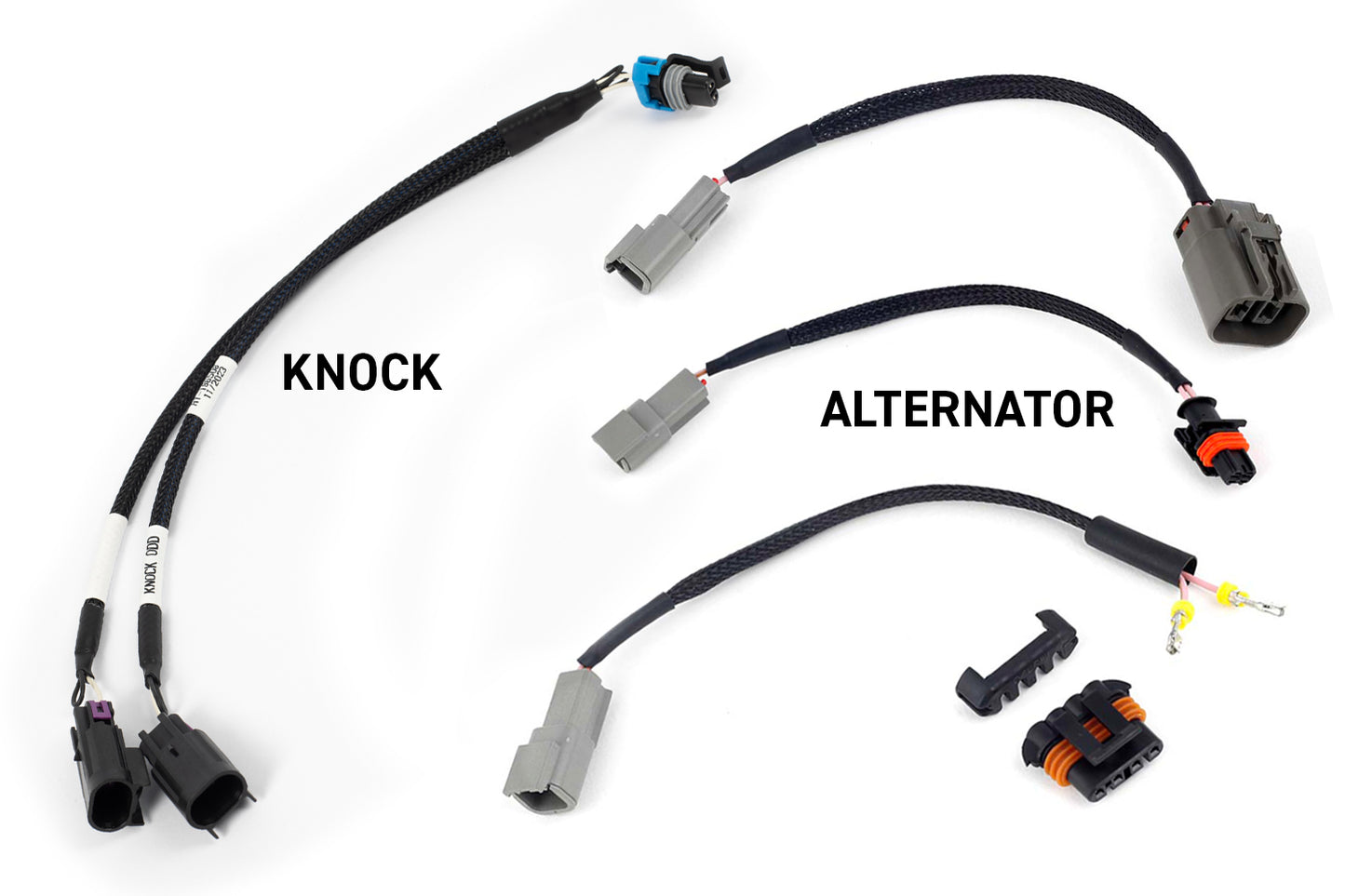

  • Alternator adapter harness set
  • Gen III knock sensor adapter harness (HT-186508)


DBW Option - HT-220204 - Nexus Rebel LS kit to suit a Gen IV LS engine with a 6-pin electronic throttle, EV6 injector plugs, and a manual transmission

  • Nexus Rebel LS ECU (HT-220001)
  • Nexus Rebel LS main terminated harness (HT-186500)

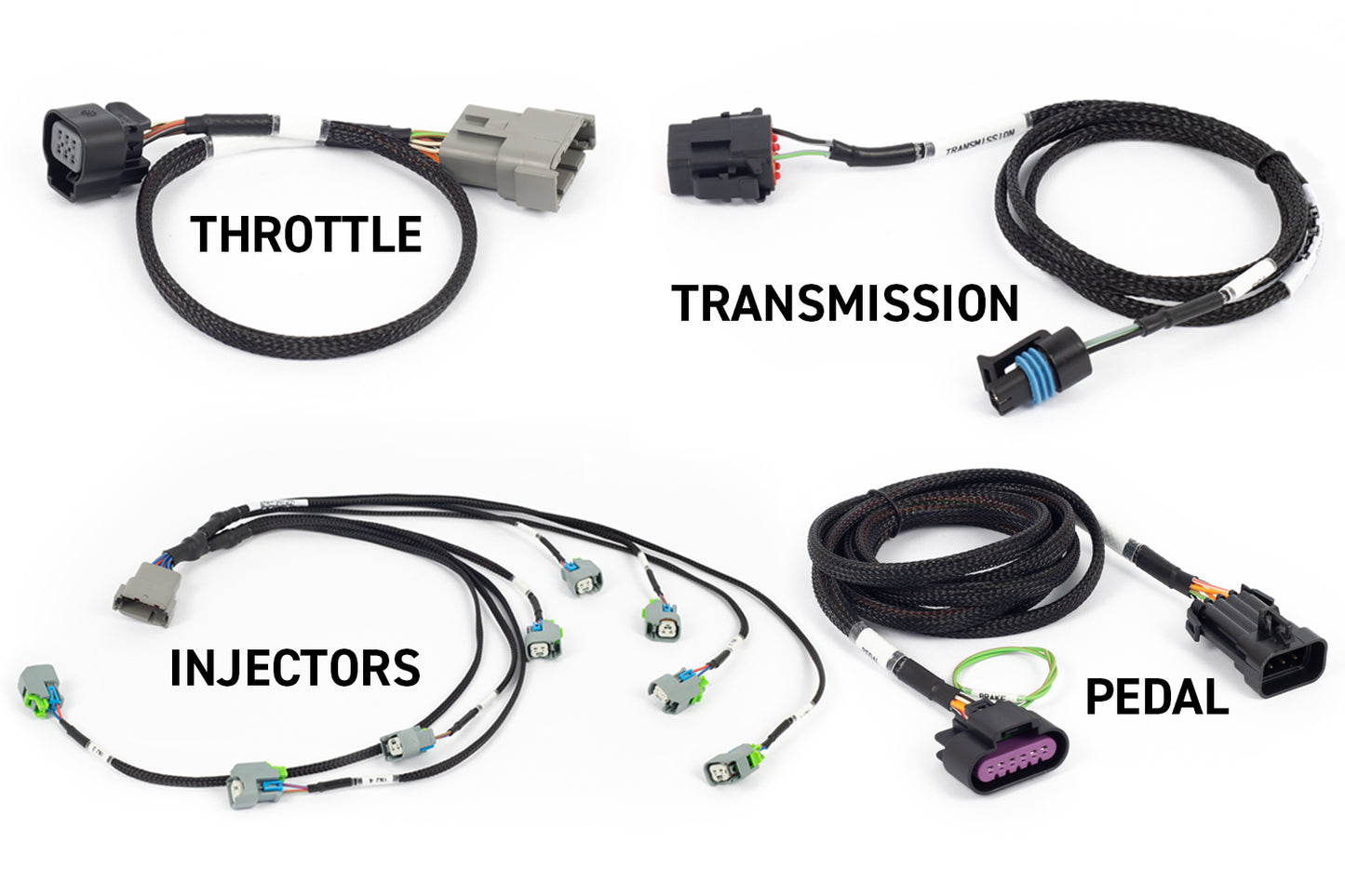

  • Electronic throttle sub-harness to connect to a standard GM 6-pin Drive-By-Wire throttle (HT-186505)
  • Accelerator Pedal Position adapter harness to suit a Corvette Pedal (HT-186507)
  • Injector sub-harness with EV6 connectors (HT-186502)
  • T56 manual transmission harness (HT-187003)
  • Bosch LSU 4.9 wideband O2 sensor and bung
  • Air temperature sensor and bung

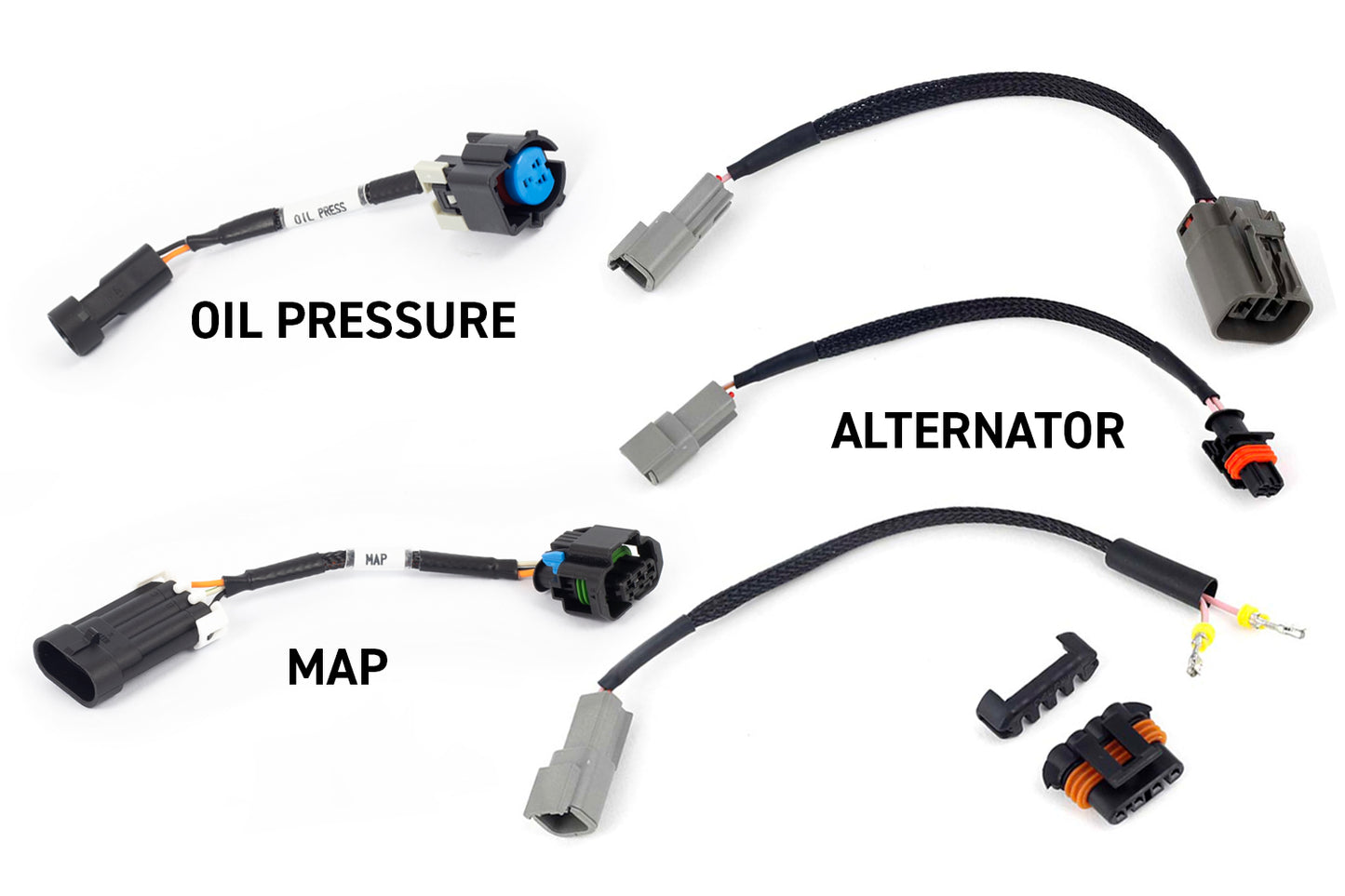

  • Alternator adapter harness set
  • Gen IV MAP sensor adapter harness (HT-186511)
  • Gen IV Oil pressure sensor adapter harness (HT-186510)
